| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE 42 Series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Features: | Equipped With A 7-inch LCD Touch Screen, Independently Developed Applications, With A P.I. D Automatic Calculus, Chinese, English Conversion, With Temperature Setting, Time Setting, Spray, Fog Removal And Other Functions. The Test Drug Supplement Is Hidd | Test Standards: | GB / T242317-2008 GB / T242318-2000 Basic Procedure Test Ka For Electrical And Electronic Products GB / T10125-1997 Artificial Atmosphere Corrosion Test Salt Spray Test Technical Conditions Of The GB / T10587-2006 Salt Spray Test Box GB105932-1990 Environm |
|---|---|---|---|
| Spray Pressure: | 1.00±0.01kgf/cm² | Water Filling Methods: | Automatic / Manual Dual Water Supply Mode, Automatic Water Inlet With A Set Of Water Purifier |
| Temperature Range: | RT+5℃~60℃ | Humidity Range: | 20~100%R.H |
| Safety Protection Devices: | ● When Low Brine, Automatically Cut Off The Heater Power Supply. ● Over-temperature, Automatically Cut Off The Heater Power Supply. ● When The Laboratory Is At Low Water Level, Automatically Cut Off The Heater Power Supply. | Models: | I E4260L I E4290L, I E42120L, I E42160L, I E42200L |

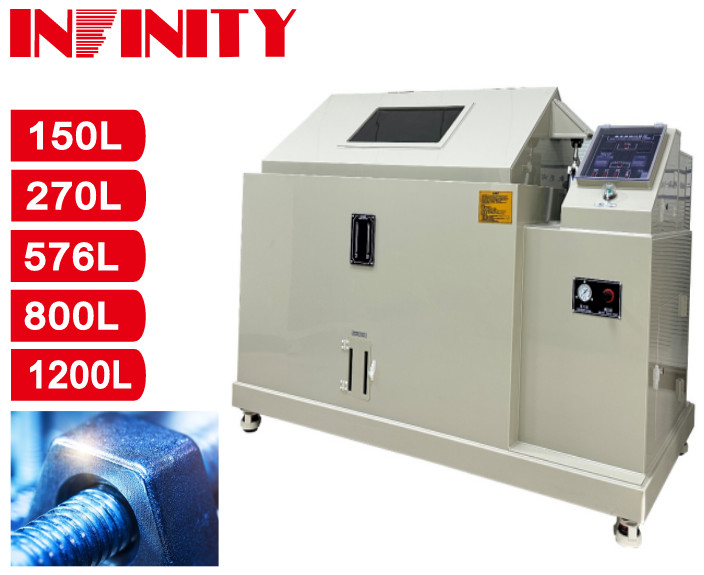

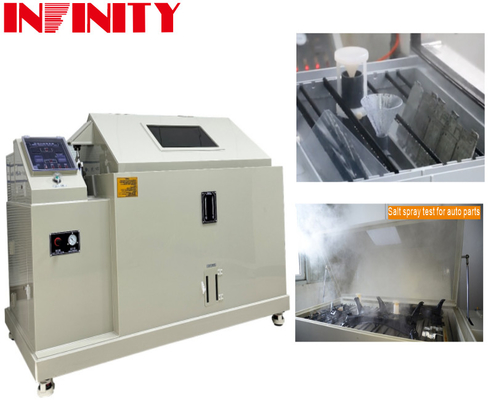

Salt Spray Test Chamber For Testing Resistance To Acid Base And High Temperatures IE42
The Salt Spray Test Chamber (New) is a cutting-edge corrosion resistance testing chamber designed to meet industry standards. This state-of-the-art equipment is essential for conducting accelerated corrosion tests on various materials, including metals and their alloys, metal overlays (anodic and cathodic), conversion overlays, anodic overlays, and organic overlays on metal materials.
The Salt Spray Test Chamber (New) is suitable for a wide range of applications, including accelerated corrosion tests on metals and their alloys, metal overlays, conversion overlays, anodic overlays, and organic overlays on metal materials. It is an essential tool for industries such as automotive, aerospace, marine, and electronics.
The Salt Spray Test Chamber (New) is equipped with advanced safety protection devices to ensure safe and efficient operation. These devices include:
The Salt Spray Test Chamber (New) has a salt mist settlement rate of 1-3ml/h and a coverage area of 80cm2. This ensures consistent and accurate results during the corrosion testing process.
The Salt Spray Test Chamber (New) features a unique specimen holder design for optimal performance. The placement frame adopts a plane dividing frame, with the option to adjust the placement angle to 15 degrees or 30 degrees. This ensures that the fog is distributed evenly on all sides and in the same direction, providing reliable and reproducible test results.
The humidity range of the Salt Spray Test Chamber (New) is 20~100%R.H, making it suitable for a wide range of corrosion testing requirements.
The Salt Spray Test Chamber (New) is a top-of-the-line corrosion testing equipment that offers the following key features:
With its advanced features and exceptional performance, the Salt Spray Test Chamber (New) is the ideal choice for any industry seeking reliable and accurate corrosion testing results.
| Model | I E4260L | I E4290L | I E42120L | I E42160L | I E42200L | |
| Laboratory Temperature Range | RT+5℃~60℃ | |||||
| Pressure Barrel Temperature Range | RT+5℃~70℃ | |||||
| Temperature Fluctuation | ±0.5℃ | |||||
| Temperature Uniformity | ≦1.0℃ | |||||
| Salt Mist Settlement | 1～3ml/h.80cm2 | |||||
| Spray Pressure | 1.00±0.01kgf/cm² | |||||
| Spray Way | Continuous spray + intermittent spray | |||||
| Valid Capacity for Testing | 150L | 270L | 576L | 800L | 1200L | |
|
WxHxD(mm ) |
600*450*400 | 900*600*500 | 1200*800*600 | 1600*1000*500 | 2000*1000*600 | |
|
Out box size: WxHxD(mm ) |
1050*700*950 | 1400*850*1100 | 2080*1050*1300 | 2430*1250*1400 | 2830*1250*1400 | |
| Box structure |
● Laboratory sealing cover: laboratory sealing cover adopts A class PP plate, thickness of 10mm, surround reinforcement of 15mm, acid and base resistance and temperature resistance of 90℃ |
|||||
| Open cover way | Manual open cover | One-click automatic open-cover | ||||
| Water filling methods | Automatic / manual dual water supply mode, automatic water inlet with a set of water purifier | |||||
| Specimen holder | In the laboratory, the placement frame adopts the plane dividing frame, the placement Angle of 15 degrees and 30 degrees is optional, and the fog on all sides and the fog direction is completely consistent. | |||||
| Safety protection devices |
● When low brine, automatically cut off the heater power supply. ● Over-temperature, automatically cut off the heater power supply. ● When the laboratory is at low water level, automatically cut off the heater power supply. |
|||||
| Power | AC220V;50Hz;1.5KW | AC 220;V50Hz;2.5KW | AC 220;V50Hz;3.5KW | AC 220;V50Hz;4.5KW | AC 380;V50Hz;5KW | |
Salt spray test chamber (new) is a highly efficient and advanced testing equipment designed and manufactured by INFINITY. It is used for the evaluation of the corrosion resistance of metallic materials and protective coatings against salt spray. The chamber is widely used in various industries, including electronics, automotive, aerospace, and coating industries, for quality control and product development.
The salt spray chamber is equipped with advanced technology and features, making it a reliable and accurate tool for testing the corrosion resistance of materials. It is an essential equipment for assessing the quality and durability of products and ensuring their long-term performance in harsh environments.
The INFINITY IE 42 Series Salt Spray Test Chamber is suitable for testing the corrosion resistance of various materials, including metals, alloys, coatings, and more. It is widely used in the following industries and scenarios:
The INFINITY IE 42 Series Salt Spray Test Chamber offers the following advantages:
The INFINITY IE 42 Series Salt Spray Test Chamber is a state-of-the-art testing equipment designed to meet the highest standards of quality and performance. It is suitable for various industries and scenarios, offering precise and reliable testing results. With its advanced features, safety protection devices, and flexible payment terms, it is the best choice for all your corrosion testing needs. Contact us now to negotiate the best price and place your order today!
The salt spray test chamber (new) is carefully packaged to ensure safe and secure delivery. It is first wrapped in protective material and then placed in a sturdy wooden crate for added protection during transit.
Once packaged, the chamber is shipped via a reputable courier service, such as DHL or FedEx, to ensure timely and efficient delivery. The shipping cost will be calculated based on the destination and weight of the package.
Upon arrival, the customer is responsible for inspecting the shipment for any damages that may have occurred during transportation. If any damages are found, the customer should contact us immediately so that we can assist with the claim process.
Overall, we strive to provide the best packaging and shipping methods to ensure that the salt spray test chamber (new) arrives in perfect condition and ready for use.
