| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE 42 Series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Open Cover Way: | Manual Open Cover & One-click Automatic Open-cover | Spray Pressure: | 1.00±0.01kgf/cm² |
|---|---|---|---|
| Models: | I E4260L I E4290L, I E42120L, I E42160L, I E42200L | Application: | It Is Also Suitable For Accelerated Corrosion Tests, Such As Metals And Their Alloys, Metal Overlays (anodic And Cathodic), Conversion Overlays, Anodic Overlays, Organic Overlays On Metal Materials, Etc. |
| Box Structure: | ● Test Room And Outer Box: The Inner And Outer Box Of The Laboratory Adopts A Class PP Polyethylene Dilute Board, The Thickness Of The Whole Machine Is 10mm, Acid And Base Resistance And Temperature Resistance To 90℃. ● Laboratory Sealing Cover: Laboratory | Salt Mist Settlement: | 1～3ml/h.80cm2 |
| Test Standards: | GB / T242317-2008 GB / T242318-2000 Basic Procedure Test Ka For Electrical And Electronic Products GB / T10125-1997 Artificial Atmosphere Corrosion Test Salt Spray Test Technical Conditions Of The GB / T10587-2006 Salt Spray Test Box GB105932-1990 Environm | Temperature Uniformity: | ≦1.0℃ |

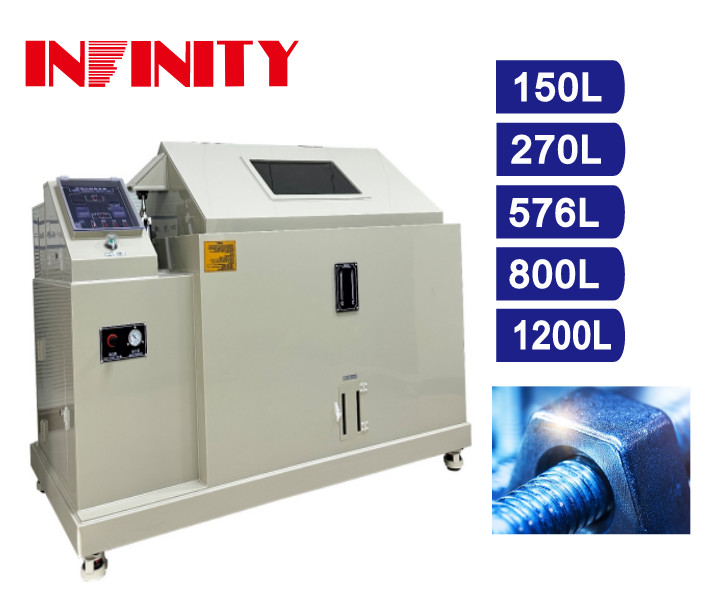

Conversion Overlays Salt Mist Spray Test Chamber For Humidity Range 20-100%R.H IE42 Series
Product Description:The Salt Spray Test Chamber (New) is a top-of-the-line corrosion testing equipment designed specifically for salt spray testing. It is highly efficient, accurate, and easy to use, making it the perfect choice for industries that require rigorous testing of their products' resistance to corrosion.
With its advanced features, accuracy, and compliance with industry standards, the Salt Spray Test Chamber (New) is the perfect choice for industries that require reliable corrosion testing equipment. Contact us today to learn more about this product and how it can benefit your business.
Specification parameters:
| Model | I E4260L | I E4290L | I E42120L | I E42160L | I E42200L | |
| Laboratory Temperature Range | RT+5℃~60℃ | |||||
| Pressure Barrel Temperature Range | RT+5℃~70℃ | |||||
| Temperature Fluctuation | ±0.5℃ | |||||
| Temperature Uniformity | ≦1.0℃ | |||||
| Salt Mist Settlement | 1～3ml/h.80cm2 | |||||
| Spray Pressure | 1.00±0.01kgf/cm² | |||||
| Spray Way | Continuous spray + intermittent spray | |||||
| Valid Capacity for Testing | 150L | 270L | 576L | 800L | 1200L | |
|
WxHxD(mm ) |
600*450*400 | 900*600*500 | 1200*800*600 | 1600*1000*500 | 2000*1000*600 | |
|
Out box size: WxHxD(mm ) |
1050*700*950 | 1400*850*1100 | 2080*1050*1300 | 2430*1250*1400 | 2830*1250*1400 | |
| Box structure |
● Laboratory sealing cover: laboratory sealing cover adopts A class PP plate, thickness of 10mm, surround reinforcement of 15mm, acid and base resistance and temperature resistance of 90℃ |
|||||
| Open cover way | Manual open cover | One-click automatic open-cover | ||||
| Water filling methods | Automatic / manual dual water supply mode, automatic water inlet with a set of water purifier | |||||

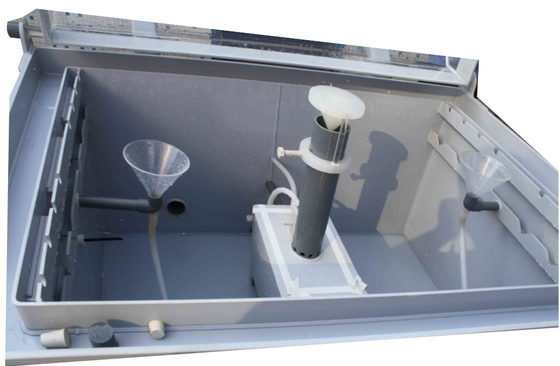

| Specimen holder | In the laboratory, the placement frame adopts the plane dividing frame, the placement Angle of 15 degrees and 30 degrees is optional, and the fog on all sides and the fog direction is completely consistent. | |||||
| Safety protection devices |
● When low brine, automatically cut off the heater power supply. ● Over-temperature, automatically cut off the heater power supply. ● When the laboratory is at low water level, automatically cut off the heater power supply. |
|||||
| Power | AC220V;50Hz;1.5KW | AC 220;V50Hz;2.5KW | AC 220;V50Hz;3.5KW | AC 220;V50Hz;4.5KW | AC 380;V50Hz;5KW | |
The Salt Spray Test Chamber (New) is a highly efficient and accurate testing equipment designed for conducting salt spray corrosion tests. It is widely used in various industries such as automotive, electronics, metal finishing, and more. This chamber is an ideal choice for simulating real-life environmental conditions and evaluating the corrosion resistance of products.
The Salt Spray Test Chamber is commonly used in laboratory settings for conducting salt spray corrosion tests on various metal and non-metal materials. The placement frame of the chamber adopts a plane dividing frame, allowing for optional placement angles of 15 degrees and 30 degrees. This ensures that the fog on all sides and fog direction is consistent, providing accurate and reliable test results. The chamber is available in different models such as I E4260L, I E4290L, I E42120L, I E42160L, and I E42200L, making it suitable for a wide range of testing needs.
Overall, the Salt Spray Test Chamber (New) is a highly efficient and customizable solution for conducting salt spray corrosion tests. With its high-quality construction, wide temperature range, and accurate testing capabilities, it is an essential equipment for any industry that requires reliable and durable products. Contact us now to learn more about our INFINITY IE 42 Series and how it can benefit your business.
The salt spray test chamber (new) will be carefully packaged to ensure safe delivery to our customers.
We offer several shipping options to meet the specific needs of our customers. The chamber can be shipped by air, sea, or ground transportation, depending on the customer's preference and location.
Our team will carefully handle the shipping process and ensure that the chamber arrives at its destination in a timely and safe manner.
For international shipping, all necessary customs documents and declarations will be included to facilitate a smooth delivery process.
Upon delivery, our customers can expect a fully functional and well-packaged salt spray test chamber (new) to be delivered to their specified location.
