Customized Salt Spray Fog Test Chamber With Temperature Fluctuation ±0.5C

Product Description:

The Salt Spray Test Chamber (New) is a state-of-the-art salt spray corrosion testing equipment designed for environmental testing. It is also known as the Environmental Salt Spraying Tester or Salt Fog Spray Corrosion Test Chamber. With its automatic features and high precision technology, it is the perfect choice for conducting salt spray tests on various materials.

• Special Designs Can Be Made According To Customer Needs.
• PT 100 Temperature Sensor, With High Precision And Low Maintenance.
• According To The Customer Installation Place Can Be Different Manually And Automatically Add Water, Easy To Use.
• Adjustment Greenhouse And Laboratory Independent, The Middle Through The Air Door Control Connection, Perfect Structure, Maintenance More Simple.
• Energy-saving Design, Controlled Separately According To The Test.
• Can Do Salt Spray Neutral Test, Corrosion Resistance Test, Drying Test, Moisture Test, Static Test, Can Also Do Salt Spray, Dry And Wet, Static Mixing Test, Automatic Control.
• Can Automatically Cycle Spray, Continuous Spray, Timing Spray.
• Do Not Need To Move Products, Can Realize Salt Spray, Wet Heat, Drying Automatic Circulation Test, Easy To Use.

• Weight (Kg): About 300, 400, 500, 600, 700.
• Condenser Mode: Air-cooled.
• Water Filling Method: Automatic / Manual Dual Water Supply Mode, Automatic Water Inlet With A Set Of Water Purifier.
• Box Structure:
  • Test Chamber Box: Made of PP Polypropylene Board with a thickness of 10mm and can withstand temperatures up to 100 degrees.
  • Laboratory Outer Box: Made of PP Polypropylene Board with a thickness of 10mm and can withstand temperatures up to 100 degrees.
  • Laboratory Sealing Cover: Made of PP Polypropylene Plate with a thickness of 10mm, features a one-button automatic open cover with a transparent observation window and a defogging device for convenient and clear observation of the test. It can withstand temperatures up to 100 degrees.

• Salt spray corrosion testing equipment.
• Environmental salt spraying tester.
• Salt fog spray corrosion test chamber.
• Automatic salt spray tester.
• PP polypropylene board for the box structure, providing durability and temperature resistance.
• High precision temperature sensor for accurate and reliable results.
• Energy-saving design for efficient use of resources.
• Easy to use with automatic features and user-friendly controls.
• Automatic circulation test for continuous and precise testing.

Applications:

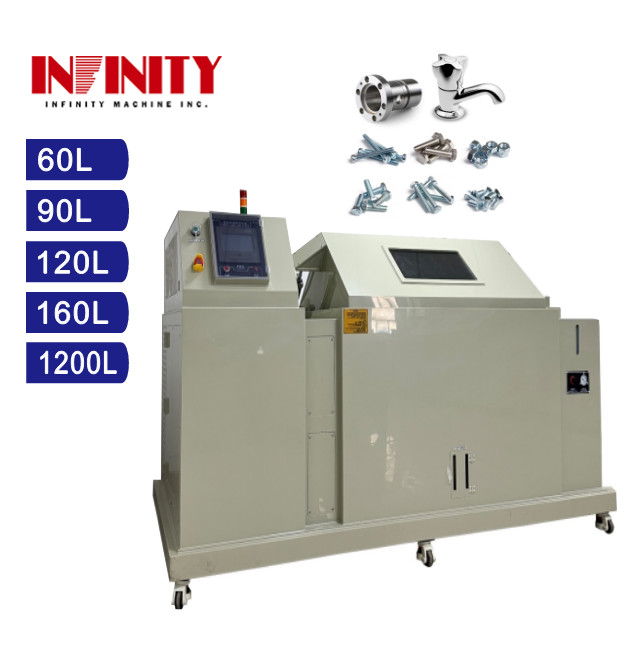

The INFINITY IE 41 Series Salt Spray Test Chamber is a state-of-the-art testing equipment designed for conducting salt spray corrosion tests on various materials. This product is perfect for industries such as electrical and electronic, automotive, military equipment, and many more.

The INFINITY IE 41 Series Salt Spray Test Chamber is a product of INFINITY, a leading manufacturer of testing equipment. With years of experience and expertise in the industry, INFINITY is known for its high-quality and reliable products.

The IE 41 Series is the latest addition to the INFINITY Salt Spray Test Chamber lineup. It is equipped with advanced features and technologies, making it the most efficient and accurate salt spray test chamber in the market.

The INFINITY IE 41 Series Salt Spray Test Chamber is proudly made in China. It is manufactured in state-of-the-art facilities using the latest equipment and techniques, ensuring the highest quality standards are met.

The INFINITY IE 41 Series Salt Spray Test Chamber has obtained CE and ISO certifications, ensuring that it meets all international quality and safety standards. This certification is a testament to the product's reliability and performance.

We have no minimum order quantity for the INFINITY IE 41 Series Salt Spray Test Chamber. You can order a single unit or multiple units, depending on your testing needs.

The price of the INFINITY IE 41 Series Salt Spray Test Chamber can be negotiated based on your specific requirements. We offer competitive prices while maintaining the highest quality standards.

The INFINITY IE 41 Series Salt Spray Test Chamber is packaged with clear sheets, sponges, and wood cartons to ensure safe transportation and delivery. We take extra care in packaging to protect the product from any damage during transit.

The delivery time for the INFINITY IE 41 Series Salt Spray Test Chamber is 20-30 days after the order is confirmed. We have a streamlined production process to ensure timely delivery to our customers.

We accept various payment methods, including TT, PAYPAL, Moneygram, and more, for the convenience of our customers.

We have a monthly supply capacity of 200 sets of the INFINITY IE 41 Series Salt Spray Test Chamber. This ensures that we can meet the demands of our customers, even for bulk orders.

The INFINITY IE 41 Series Salt Spray Test Chamber has a humidity range of 20~100%R.H, making it suitable for a wide range of testing requirements.

The temperature range of the INFINITY IE 41 Series Salt Spray Test Chamber is 5℃ ～ +85℃. This enables the product to simulate various weather conditions for accurate testing results.

The INFINITY IE 41 Series Salt Spray Test Chamber is equipped with safety protection devices, including a refrigeration system, test box, heating system, and others, to ensure safe and efficient operation.

The temperature departure of the INFINITY IE 41 Series Salt Spray Test Chamber is ±1℃, providing precise and reliable testing results.

• GB / T20854-2007 / ISO14993-2001 Dry-wet Salt Spray Test
• GB-T5170.8-2008_ Inspection Method Of Electrical And Electronic Products Environmental Test Equipment _ Salt Spray Test Equipment
• GJB150.11A-2009 Environmental Test Method Of Military Equipment Laboratory Salt Spray Test
• GBT2424.17-2008 Test Method For Salt Spray
• GB-T2423.18-2000 Sodium Chloride Alternating Salt Spray Test Method
• GB-T2423.3-2006 (IEC6008-2-78-2001) Test Cab: Constant Damp Heat Test Method
• GBT2423_4-2008 Test Method For Humid Heat Mixing
• IEC60068-2-52-2017 Environmental Testing-Part 2-25 Test Tests Kb Circulating Salt Spray (Sodium Chloride Solution)
• IEC 60068-2-11-1982 Electrical Technology. Basic Environmental Test Procedures. Part 2: Testing. Section 11: Test Ka: Salt Spray

The INFINITY IE 41 Series Salt Spray Test Chamber complies with various international test standards, ensuring accurate and reliable results for your testing needs.

The INFINITY IE 41 Series Salt Spray Test Chamber is a reliable and efficient testing equipment for conducting salt spray corrosion tests. With its advanced features, safety protection devices, and compliance with international test standards, this product is essential for industries that require accurate and reliable testing results. Contact us now to get your hands on the INFINITY IE 41 Series Salt Spray Test Chamber.

model	I E4160L	I E4190L	I E41120L	I E41160L	I E41200L
Temperature range	5℃ ～ +85℃
Temperature departure	±1℃
Temperature fluctuation	±0.5℃
Temperature uniformity	≦2.0℃
Humidity range	20~100%R.H
Humidity deviation	±2%R.H
Relative humidity fluctuation	±2%R.H
Humidity uniformity	±3%R.H
Temperature&humidity range
Rising and cooling rate	RT →+85℃≤40 min RT→+0℃≤30 min Salt spray (35℃) dry (60℃.20~30%RH)≤30 min. Dry (60℃, 20-30% RH) and wet (50℃, 95% + / -5% RH) for 15 min. Moistet (50℃, 95% + / -5% RH) salt spray (35℃) for 30 min (immediate spray required after switching).
Effective inner capacity	150L	270L	576L	800L	1200L
Internal box size: WxHxD(mm )	600*500*500	900*600*600	1200*1000*600	1600*1000*600	2000*1000*600
Out box size: WxHxD(mm )	1780*950*1300	2080*1050*1350	2380*1450*1450	2780*1450*1450	3180*1450*1450
Box structure	● Test chamber box: using PP polypropylene board, the thickness of 10mm, temperature resistance of about 100 degrees. ● Laboratory outer box: using PP polypropylene board, thickness of 10mm, temperature resistance of about 100 degrees. ● Laboratory sealing cover: using PP polypropylene plate, thickness of 10mm, one-button automatic open cover, with transparent observation window, combined with the defogging device, Convenient clear observation of the test, temperature resistance of about 100 degrees.
Water filling method	Automatic / manual dual water supply mode, automatic water inlet with a set of water purifier
specimen holder	● The inner wall of PVC polyethylene dilute triangular tank box is used to place the dividing frame, the Angle of the test product can be adjusted at will, and the number of test pieces on all sides is completely consistent. ● At the bottom of the test box, the PP plate punching sample placement platform. The uniform opening on the platform surface will discharge the spray liquid quickly, and the large sample can be placed on the platform for testing.
refrigeration compressor	France taikang fully closed compressor
cooling medium	Non-fluorinated refrigerant R404A complies with environmental regulations, safe and non-toxic
Condenser mode	air-cooled
Safety protection device	refrigeration system	Compressor overheating protection Compressor overcurrent protection Over pressure and low pressure protection Condensate fan overheating protection
	test box	Adjustable overtemperature protection Extreme overtemperature protection of the air conditioning channel Fan, motor superheater relay protection
	heating system	Heating pipe dry burning protection alarm Abnormal water supply alarm Abnormal drainage alarm
	other	earth leakage protection Overload and short-circuit protection The power supply lacks the reverse phase protection function
weight (Kg)	About 300	About 400	About 500	About 600	About 700
Power	AC380V;50Hz;7KW	AC380;V50Hz;9KW	AC380;V50Hz;11KW	AC 380;V50Hz;13KW	AC 380;V50Hz;15KW

Customization:

Packing and Shipping:

The salt spray test chamber (new) shall be packed in sturdy wooden case to ensure safe transportation.

Shipping options:

• Sea freight: The chamber will be shipped by sea in a container, with proper packaging and protection to prevent damage during transit.
• Air freight: For urgent orders, the chamber can be shipped by air in a customized crate, with appropriate packaging and cushioning materials.
• Land transportation: For local or nearby deliveries, the chamber can be transported by truck with proper packaging and handling.

All necessary shipping documents, such as commercial invoice, packing list, and bill of lading, will be provided along with the shipment.

Customers can also arrange for their own shipping methods if desired.
