Air-cooled Salt Spray Corrosion Test Chamber with Automatic Water Filling Method

Product Description:

The Salt Spray Test Chamber is a highly reliable and efficient testing equipment designed for evaluating the corrosion resistance of various metal materials and coatings. It provides a simulated environment that exposes the test samples to a highly corrosive salt fog spray, allowing for accurate and precise evaluation of the product's durability and performance.

The Salt Spray Test Chamber boasts the following key features:

• Temperature Fluctuation: ±0.5℃
• Humidity Uniformity: ±3%R.H
• Condenser Mode: Air-cooled

The Salt Spray Test Chamber comes in various sizes ranging from 150L to 1200L to cater to different testing needs. The box structure is made up of high-quality imported CPVC polyethylene board with a thickness of 8mm, providing excellent temperature resistance of about 120 degrees.

The box is divided into three parts:

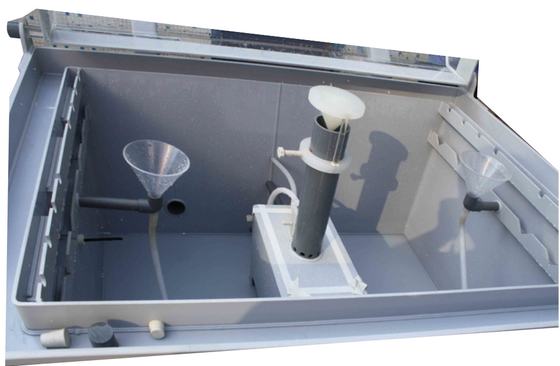

• Test Chamber Box: This is where the test samples are placed for exposure to the salt fog spray. It is made up of the imported CPVC polyethylene board and has a temperature resistance of about 120 degrees.
• Laboratory Outer Box: This is the outer layer of the test chamber and is also made up of imported CPVC polyethylene board. It provides additional insulation and temperature resistance for the test chamber.
• Laboratory Sealing Cover: The sealing cover is also made up of imported CPVC polyethylene board with a thickness of 8mm. It features a one-button automatic open cover with a transparent observation window. The sealing cover is equipped with a defogging device, making it easy to observe the test samples during the testing process. It also has a temperature resistance of about 120 degrees.

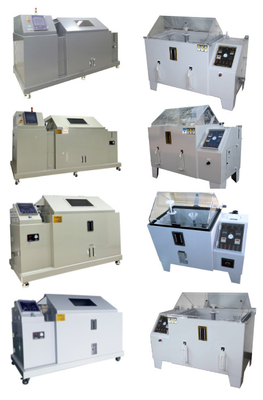

The Salt Spray Test Chamber is available in five different sizes with varying test capacities:

The Salt Spray Test Chamber is the ideal choice for conducting salt spray corrosion resistance tests and is widely used in industries such as automotive, electronics, and aerospace. It is a must-have equipment for product development and quality control, ensuring that your products meet the highest standards of durability and performance.

Applications:

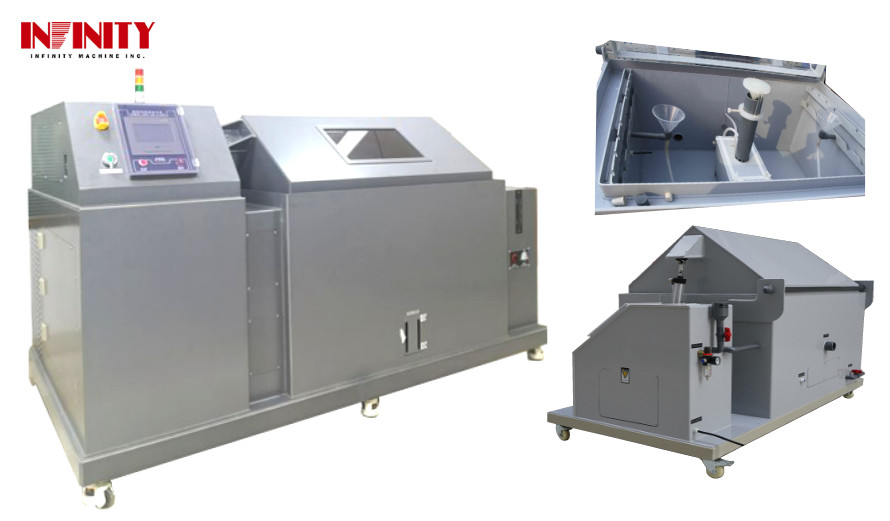

The INFINITY IE 40 Series Salt Spray Test Chamber is a high-quality and reliable corrosion testing equipment designed to simulate and accelerate the impact of salt pollution on metal materials. It is a comparative test that exposes metal samples to salt spray, dry, wet, and humid environments. This equipment provides valuable information on the properties of materials exposed to salt-contaminated environments, giving manufacturers an idea of how their products will perform in such conditions.

• Specification parameters:

  model	I E4060L	I E4090L	I E40120L	I E40160L	I E40200L
  temperature range	0℃ ～ +90℃
  temperature departure	±1℃
  temperature fluctuation	±0.5℃
  temperature uniformity	≦2.0℃
  Humidity range	20~100%R.H
  Humidity deviation	±2%R.H
  relative humidity fluctuation	±2%R.H
  humidity uniformity	±3%R.H
  Rising and cooling rate	RT →+95℃≤50 min . RT→+0℃≤30 min Salt spray (35℃) dry (60℃.20~30%RH)≤30 min. Dry (60℃, 20-30% RH) and wet (50℃, 95% + / -5% RH) for 15 min. Moistet (50℃, 95% + / -5% RH) salt spray (35℃) for 30 min (immediate spray required after switching).
  Test the valid content product	150L	270L	576L	800L	1200L
  Internal box size: WxHxD(mm )	600*500*500	900*600*600	1200*1000*600	1600*1000*600	2000*1000*600
  carton size: WxHxD(mm )	1780*950*1300	2080*1050*1350	2380*1450*1450	2780*1450*1450	3180*1450*1450
  Box structure	● Test chamber box: using imported CPVC polyethylene board, thickness of 8mm, temperature resistance of about 120 degrees. ● Laboratory outer box: using imported CPVC polyethylene board, thickness of 8mm, temperature resistance of about 120 degrees. ● Laboratory sealing cover: using imported CPVC polyethylene board, thickness of 8mm, one-button automatic open cover, with transparent observation window, combined with the defogging device, Convenient to observe the test, temperature resistance of about 120 degrees.
  Water filling method	Automatic / manual dual water supply mode, automatic water inlet with a set of water purifier
  specimen holder	● The inner wall of C PVC polyethylene dilute triangular tank box is used to place the dividing frame, the Angle of the test product can be adjusted at will, and the number of test pieces on all sides is completely consistent. ● The bottom of the test box. Uniuniform opening on the platform surface will discharge the spray liquid quickly, and large samples can be placed on the platform for testing.
  refrigeration compressor	France taikang fully closed compressor
  cooling medium	Non-fluorinated refrigerant R404A complies with environmental regulations, safe and non-toxic
  Condenser mode	air-cooled
  Safety protection device	refrigeration system	Compressor overheating protection Compressor overcurrent protection Over pressure and low pressure protection Condensate fan overheating protection
  	test box	Adjustable overtemperature protection alarm Extreme overtemperature protection of the air conditioning channel Fan, motor superheater relay protection
  	heating system	Heating pipe with dry burning protection Abnormal water supply alarm Abnormal drainage alarm
  	other	earth leakage protection Overload and short-circuit protection The power supply lacks the reverse phase protection function
  weight (Kg)	About 300	About 400	About 500	About 600	About 700
  source	AC380V;50Hz;7KW	AC 380;V50Hz;9KW	AC 380;V50Hz;11KW	AC 380;V50Hz;13KW	AC 380;V50Hz;15KW


• Cooling Medium: Non-fluorinated Refrigerant R404A Complies With Environmental Regulations, Safe And Non-toxic

The INFINITY IE 40 Series Salt Spray Test Chamber is specifically designed to accelerate corrosion by exposing metal materials to salt pollution. The chamber includes a test method that exposes the sample cycle to salt spray, dry, wet, and humid environments. This test is a comparative test and cannot predict the long-term results of the corrosion resistance of the same metal material used in this environmental condition. However, it still provides valuable information on the properties of materials exposed to salt-contaminated environments. Compared to traditional accelerated corrosion tests, such as the Neutral Salt Spray Test (NSS), Acetate Salt Spray Test (AASS), and Copper Accelerated Acetate Salt Spray Test (CASS), the INFINITY IE 40 Series offers a more efficient and reliable solution.

The INFINITY IE 40 Series Salt Spray Test Chamber has an automatic/manual dual water supply mode. It can automatically refill water with a set of water purifier, ensuring the purity of the water used for testing. This feature saves time and effort for users, making the testing process more convenient and efficient.

The INFINITY IE 40 Series Salt Spray Test Chamber is manufactured and supplied by INFINITY, a leading company in the field of environmental testing equipment. With high-quality products and excellent customer service, INFINITY has become a trusted brand for corrosion testing equipment. Our products are widely used in industries such as automotive, aerospace, electronics, and more.

For more information on our products and services, please visit our website or contact us directly. We are dedicated to providing the best solutions for your corrosion testing needs.

Customization:

Brand Name: INFINITY

Model Number: IE 40 Series

Place of Origin: MADE IN CHINA

Certification: CE ISO

Minimum Order Quantity: 1

Price: Negotiate

Packaging Details: Clear sheet+sponge+wood carton

Delivery Time: 20-30 days after order confirmed

Payment Terms: TT, PAYPAL, Moneygram and so on

Supply Ability: 200 sets / month

Relative Humidity Fluctuation: ±2%R.H

Application Standards:

• GB / T20854-2007 / ISO14993-2001 Dry-wet Salt Spray Test
• GB-T5170.8-2008_ Inspection Method Of Electrical And Electronic Products Environmental Test Equipment ___ Salt Spray Test Equipment
• GJB150.11A-2009 Environmental Test Method Of Military Equipment Laboratory Salt Spray Test
• GBT2424.17-2008 Test Method For Salt Spray
• GB-T2423.18-2000 Sodium Chloride Alternating Salt Spray Test Method
• GB-T2423.3-2006 (IEC6008-2-78-2001) Test Cab: Constant Damp Heat Test Method
• GBT2423_4-2008 Test Method For Humid Heat Mixing
• IEC60068-2-52-2017 Environmental Testing-Part 2-25 Test Tests Kb Circulating Salt Spray (sodium Chloride Solution)
• IEC 60068-2-11-1982 Electrical Technology. Basic Environmental Test Procedures. Part 2: Testing. Section 11: Test Ka: Salt Spray

Models: IE4060L; IE4090L; IE40120L; IE40160L; IE40200L

Advantage: This customization service can better reproduce the corrosion occurring in outdoor salt pollution environment.

Box Structure:

• Test Chamber Box: Using imported CPVC polyethylene board with a thickness of 8mm and temperature resistance of approximately 120 degrees.
• Laboratory Outer Box: Using imported CPVC polyethylene board with a thickness of 8mm and temperature resistance of approximately 120 degrees.
• Laboratory Sealing Cover: Using imported CPVC polyethylene board with a thickness of 8mm, one-button automatic open cover, and a transparent observation window. It also comes with a defogging device for convenient test observation, with a temperature resistance of approximately 120 degrees.

Keywords: Salt mist spray test chamber, Salt spray corrosion testing equipment, Salt spray fog test chamber, Salt spray test cabinet, Salt spray corrosion chamber, Corrosion resistance test chamber, Corrosion test equipment, Salt spray tester, Salt spray testing machine

Packing and Shipping:

The salt spray test chamber (new) is packaged in a sturdy wooden box to ensure safe transportation. The chamber is first wrapped in protective foam and then placed in the box. Additionally, all fragile components are individually wrapped in bubble wrap to prevent any damage during shipping.

For international shipping, the chamber is securely strapped onto a pallet and covered with a plastic sheet. This provides additional protection against moisture and physical damage during transit.

Customers can also request for customized packaging options to suit their specific needs.

FAQ:

• Q: What is the brand name of this product?

  A: The brand name of this product is INFINITY.

• Q: What is the model number of this product?

  A: The model number of this product is IE 40 Series.

• Q: Where is this product made?

  A: This product is made in China.

• Q: What certifications does this product have?

  A: This product has CE and ISO certifications.

• Q: What is the minimum order quantity for this product?

  A: The minimum order quantity for this product is 1 set.
