| Place of Origin: | Made in China |
| Brand Name: | Infinity Machine |
| Certification: | CE, ISO |
| Model Number: | B8240S |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Drop ball impact testing machine: Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Falling ball impact testing machine: Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Impact Height: | 600～1500mm Adjustable (or 2400mm, 4800mm) | Impact Steel Ball: | 1040g±10g(∮63.5mm), 2260g±20g(∮82.5mm) |
|---|---|---|---|
| Specimen Size: | 610x610mm | Steel Ball Falling Direction: | Vertically 90°±3°to The Specimen |
| Sucking Way: | DC Electromagnetic Sucker | Dimension: | 1000X700x2000mm |
| Weight: | About 300kg | Power: | AC220V 5A Or Specified By User |
| Highlight: | JIS R3205 Ball Drop Test Equipment,Drop Impact Tester For Glass,JIS R3205 Ball Drop Tester |
||

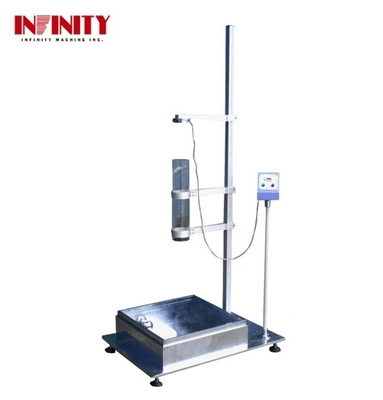

Laminated Glass Ball Drop Impact Tester, Ball Impact Test Equipment
Model: B8240S
Application:
Ball impact tester is design according to the standard GB/T9962-1999- 6.11, this ball drop impact test machine satisfys the Architecture laminated glass impact testing requirement.
Standard:
JIS R3205:2005, JIS R3205:1989, ISO/DIS12542 1, 12543-6:1997, AS/NZS2208:1996, GB/T9962-1999
Specification:
| Model | B8240S |
| Impact height | 600～1500mm adjustable(2400mm or 4800mm can be option) |
| Impact steel ball | 1040g±10g(∮63.5mm) |
| 2260g+30g/-20g(∮82.5mm) | |
| Specimen size | 610x610mm |
| Steel ball falling direction | Vertically 90°±3°to the specimen |
| Counting cycles | 0～999,999times |
| Sucking way | DC electromagnetic sucker |
| Dimension (WxDxH) | 1000X700x2000mm |
| Weight | About 300kg |
| Power | AC220V 5A or specified by user |
