| Place of Origin: | Made in China |
| Brand Name: | Infinity Machine |
| Certification: | CE, ISO |
| Model Number: | S6440 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | White Goods Clamping Tester: Standard export wooden case. |
| Delivery Time: | White Goods Clamping Testing Machine: Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | White Goods Clamping Test Machine: 20 sets per month |
| Test Standards: | ASTM D6055-96 METHOD, ISTA ,LTP-2001,GB/T 4857.4-2008 | Warranty: | 1 Year |
|---|---|---|---|
| Maximum Clamping Space: | W2000 * D1200 * H1200mm | Minimum Clamping Space: | W630 * D1200 * H1200mm |
| Baseboard Width: | No Slower Than 1800 * 1800mm | Clamping Speed: | 10～300mm/min, Adjustable |
| Lifting Space: | 0～1000mm, Adjustable | Colour: | White |
| Highlight: | AC380V Carton Testing Machine,GB/T 4857.4 Carton Testing Machine,GB/T 4857.4 Package Test Machine |
||

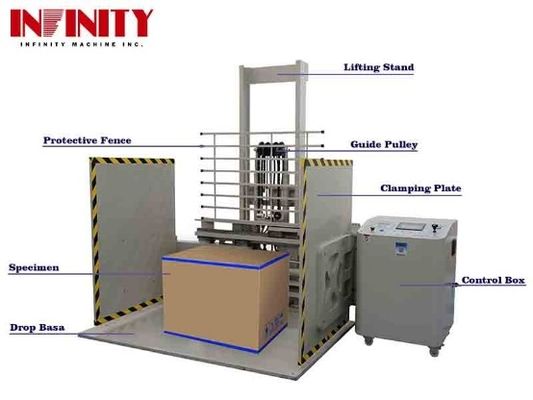

Model:S6440
Applications:
White Goods Packaging Clamp Testing Equipment is designed to measure the deflections of product packages and protective capacity of packages for product when suffering level pressure in the process of transportation and storage to improve the quality of product package.
Test standards:
Meet the requirements of ASTM D6055-96 METHOD, ISTA Packaging Test EHP Cold, LTP-2001 Clamping test,
GB/T 4857.4-2008 Basic Experiment of Packaging and Transporting Packages,
ISTA (International Safety Transit Association) 1A Packaging Performance of Independent Packaging Products That is No Heavier Than 1501b (68kg),
ASTM Standard D 4169 Standard Operating Specification for Shipping Containers and System Protection Performance test,
ASTM Standard D 6055 Standard Test Method for Compositional Load and Mechanized Transport of Large-scale Shipping Containers or Crates,
ASTM Standard D 6179 Standard Test Method for Compositional Load and Rash Transport of Large-scale Shipping Containers or Crates,
ASTM Standard D 999, Standard Test Method for Shock Test of Shipping Containers,
ASTM Standard D 5445 Geographical Symbols for Standard Operational Actions in Cargo Transport.
| Weight of maximum test piece | 500Kg (can be discussed) |
| Clamping pressure | 400-3000 pounds(adjustable) |
| Force calibrator | Force sensor and digital display calibrating the clamping force |
| Unit(switchable) | Between Kg, kn and Lb |
| Force value accuracy | National standard class 1.6 |
| Clamping panel dimension | 1200*1500mm, thickness of no less than 25mm |
| Clamp plate requirements | Deformation under the maximum pressure working state ,the two plates are parallel, while each plate and the floor are vertical to each other. |
| Clamping space(W*D*H) | 600~2100*1200*1400mm(can be discussed) |
| Baseboard dimension | W2200*D2000*H20mm |
| Clamping speed | 10~300nn/min(adjustable) |
| Lifting space | 0~1000mm(adjustable) |
| Safety device | Overload protection, overvoltage protection. limit protection and sudden power-off protection |
| Control | Human-computer interface with touch screen is used or the controller that controlled by PLC program with convenient operation and stable performance |
| Drive mode | Hydraulic drive |
| Power | AC380V 50Hz 3KW or specified bu user |
| Dimension | W2200*D2000*H2050mm |
| Control box dimension | W750*D800*H1000mm |
| Weight | About 3200kg |
