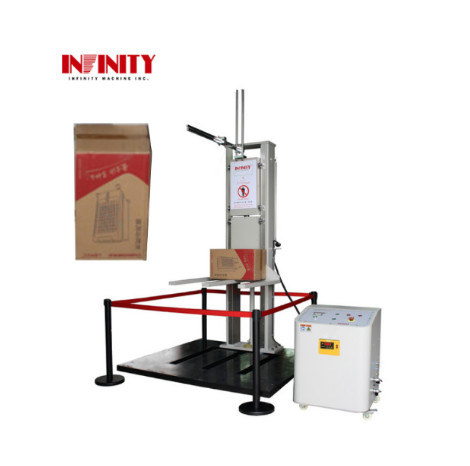

Large Package Carton Zero Drop Testing Machine For Packing Box Carton Drop Weight Testing 25°± 3° 55~85% RH

Large Packing Carton Drop Testing Machine, Zero Drop Test Machine for Packing Box, Carton Drop Weight Test Machine  Model: DT5100 Series

Application:

Zero drop testing machine is a kind of drop testing machine can be used for large furniture, office tables and chairs, household appliances and packaging products. The device performs both bare drop (unpackaged) and package drop (packaged) tests. Because large packaging items are heavy and difficult to move, top surfaces and sides are less likely to fall off, so specialized equipment is needed for testing.

Packaging carton zero drop testing machine can evaluate the drop bearing capacity of packaging products during transportation and loading and unloading, helping to improve and perfect packaging design. By simulating falls that may occur in actual transportation and handling environments, the device can detect damage to packaged products after falling, providing important data support to ensure the safety and integrity of products during transportation.

This equipment is of great significance for ensuring product quality and transportation safety, and is an indispensable and important tool for the modern logistics and packaging industry.

Features:

Packaging box zero drop testing machine adopts double track system and oil pressure lifting system, the support table height digital display, easy to operate.

Suitable for drop tests of larger packages, the support table design makes loading and unloading test samples more convenient. The device can test the sides, edges and corners of the package at a very low test height, which can be started from zero.

The substrate has high stiffness and high flatness, and the deformation does not exceed 0.1mm on any 100mm2 area of the substrate bearing 10kg dead weight.

The lifting control device ensures that the lifting height digital display is accurate, and the difference between the actual lifting height and the digital display height is within +/-2%.

Fall height is defined as the distance between the lowest point of the specimen before falling and the impact platform. These characteristics make the packaging carton zero drop test machine an efficient and accurate drop test equipment, which provides important support for packaging design and product transportation safety.

Structure of machine:

1. Employ clamping roller double guide rails guide structure effectively to avoid derailing during lifting and dropping process with safety performance greatly improved;

2. Employ the hydraulic lifting and descending with electronic control with simple and convenient operation. Just press “lifting” or “descending” on the control console;

3. Employ dedicated trip device (during the course of applying for national patent, the patent pending number is.: 200880796320.1, any imitation

    shall be punished according to relevant laws) which makes the drop frame be released at one moment, so as to ensure the packaging products

    can vertically strike the base plate in the form of free-fall motion;

4. It applies to drop test for large and heavy packaging products because it is vertically lifted from zero height. Loading and unloading the products are convenient and fast, and drop test of lower height such as edges, surfaces and angles can be realized. The drop height can be started from zero.

5. Safety protection design: employ the design of double buttons to control drop. The operator is required to use both hands to press the drop

    buttons to prevent faulty operation;

6. Employ CKD hydraulic buffer to absorb the impact energy produced by instantaneous drop of drop frame, so as to prevent bad effect on the

packaging products of secondary pulse and rigid impact damage on drop frame;

7. Digital display height: employ precision lever type grating ruler to synchronously collect the height change of hoisting appliance. Current height

    and set upper limit height can be displayed at real-time. Once reaching the upper or lower limit height, it automatically stops to protect the machine;

Specification:

Our factory:

Technical Support and Services:

We are committed to providing our customers with exceptional technical support and services.

We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.

• We provide technical advice and assistance, from initial inquiry to product delivery.
• We offer a variety of customized services to fit your specific needs.
• We offer installation and set-up services.
• We offer training and maintenance services.
• We offer spare part and consumable supply services.

Our team of specialists is dedicated to providing the highest quality technical support and services for ourr test machines. If you have any questions or need assistance, please feel free contact us.

Packing and Shipping:

Our test machine will be packed in appropriate cardboard boxes and/or crates. The products will be shipped using standard shipping methods such as air freight, sea freight, or ground transport. Any special shipping requirements should be discussed with the supplier prior to the purchase.

The customer is responsible for all import duties, taxes and/or other fees associated with the goods. The supplier will provide all necessary documentation to facilitate customs clearance.
