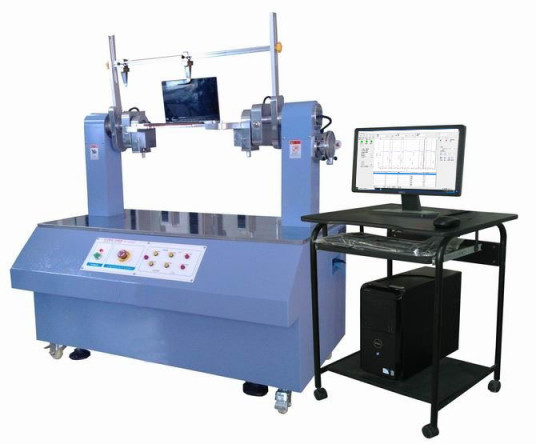

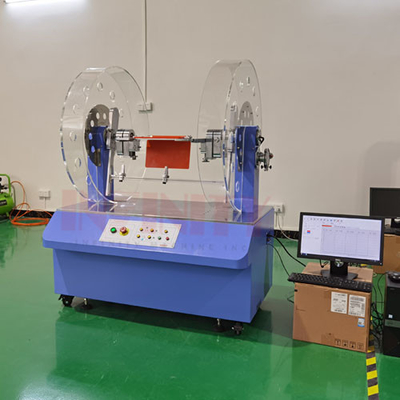

360 Degrees Laptop Hinge Tester 10~13.3inch Screen Laptop Hinge Torque Testing Equipment For Laboratory

Laptop Hinge Torque Testing Equipment Notebook Hinge Twist Testing Machine for Laboratory



Application:

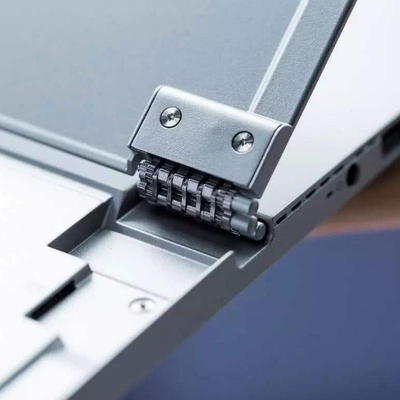

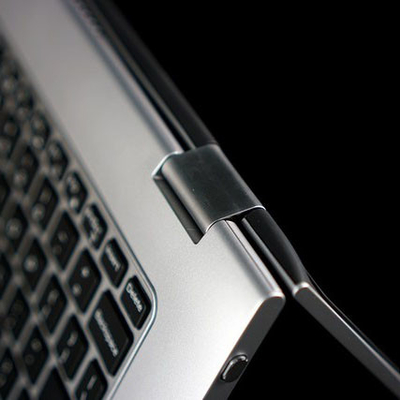

Hinge torsion tester is suitable for laptop, notebook, ultrabook, monitor, camera and other electronic products to do the torque test, and the torsion damping life-span test for the hinge, notebook hinge torque tester can measure the torque of the hinge for open and close at 360 degree and display the measurement graph.



Specialties:

1. The testing conditions are set by computer software ( the parameters include angle range, origin of stroke,testing speed, testing cycles, pause

time, stop time after certain cycles etc. )

2. Can print and record the testing value and graph ( graphs include torque~ angle, torque damping)

3. The title,sample name, test date, operator, and file No of the testing report are editable.

4. The testing report is Microsoft Access data editing forma, the testing data will be auto inputted, and can be recorded and printed. And can directly

print the testing graph in the testing interface.

5. The software and the report can be set the range of the testing parameters so that it will automatically just the PASS or FAIL ,and auto measure

and display the max torque, Min. torque and average torque and create the graph.

6. Automatically record the graphs for torque~ angle, torque damping graph+data testing data for every cycles.

7. The torque damping graph: to record every testing cycles and create a graph that can check the damping of the torque related to the testing

cycles.

8. To use servo motor from Panasonic to drive, with 2500r high pulse encoder to make sure the high precision, lower noise, high torque and long

life.

9. To use the torque transducer from Setech in Korea to measure the torque, the tolerance can be±0.5% FS.

10. To apply the force and equip with axis-center device for double sides that can guarantee the low vibration and high torque collection, and make sure the testing precision for hinge.



Specification:

Products	Laptop Hinge Torsional Test Machines
Testing space	Can test the laptop with10~13.3inch screen or specified by user
Capacity	100kgf.cm (10N.m)
Min.display toruqe	0.01kgf.cm
Min. Display angle	0.010

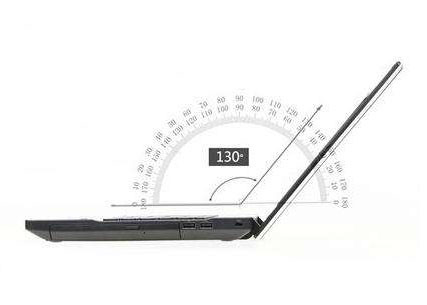

Rotation angle range	5～3550 ( because laptop has the screen and the keyboard so real angle range for hinge will not reach 0~ 3600 )
Testing speed range	1~72000/min it can set the speed in constance or can set the speed In three parts by the arc: 0~120°=1 sec, 120°~240°=2sec, 240°~360°=1sec,)
Alarm condition setting	Hinge: Hinge torque loss, or the torque < setting torque, the tester will stop and give alarm on the software.
Tester size	W1130×D650×H1450mm
Weight	About 260kg
Power	1∮, AC220V, 5A





Purpose:



Laptop torque test machine is suitable for laptop, ultrabook, monitor and the other electronic products to do the torque test, and the torsion damping life-span test for the hinge, it can measure the torque of the hinge for open and close at 360 degree and display the measurement graph.





Control software (Chinese and English):





❶ Operation language: Chinese, English switchable



❷ Torque unit: kgf.cm,N.m,Lbf.in switchable



❸ Testing method interface: Can freely call for ,edit, save, or every cycles will auto save as new file No. In the testing method interface to set the

     rotation speed( clockwise or contercockwise), testing speed, testing cycles, pause time, and so on.





❹ life span damping graph: coordinate, color, background color for damping graph are editable.





Life span damping graph





Testing report: the report head , font can be edited, can create to be PDF file, Excel.







The data report can create the max torque, min torque, and the average torque, and auto judge PASS or FAIL.





FAQ:



1. How to choose the most suitable Compression testing machine?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need

to do and the required specification.

2. What’s the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20

working days after deposit receipt. If you are in urgent need, we can consider making special

arrangement for you.

3. Do you accept customization service?

Yes, of course, we can not only offer standard machines, but also customized machines according to

your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.

4. Can we visit your factory before order?

Yes, warmly welcome to visit our factory.

5. Do you have customers of our country before?

Now our testing machines have been sold to more than 30 countries, like USA, Canada, Russia,UK,

Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,

Iran, Brazil...and so on.

6. How about your warranty?

Generally, our warranty is one year. Within the warranty period, we can offer technique support and

part parts change, necessarily, our engineers may go to your place for better service.

7. How about the packing for machine, is it safely protected during transportation?

Our machine is packed by standard export wooden carton, it won’t be damaged. We’ve delivered many

testing machines abroad by sea or by air without damage.

8. What is the order process?

Inquiry - quotation - communication - order confirming - deposit payment - production - testing and

debugging - balance payment - packing - delivery - customer receiving - after service.

9. How to install and use the product?

The product is shipped with an operating instructions and video of English version.
