| Place of Origin: | Made in China |
| Brand Name: | Infinity Machine |
| Certification: | CE, ISO |
| Model Number: | C5310 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Capacity: | 10KN, 20KN, 50KN | Test Space: | 1000x1000x1200mm, 1200x1200x1200mm Or 1500x1500x1500mm |
|---|---|---|---|
| Motor: | AC Servo Motor | Dimension: | 1750x1000x2000mm Or 1950x1200x2000mm |
| Standard: | ISO2872, ASTM D642, TAPPI-T804, JIS-Z0212. | Name: | Cardboard Packaging Price Compression Testing Machine Compression Package Testing Equipment 10KN / 20KN / 50KN |
| Load Rate: | Stepless | Test Speed: | 0.001~200mm/min |
| Software: | Special Closed Control Software | ||
| Highlight: | packaging testing equipments,packaging testing instruments |
||

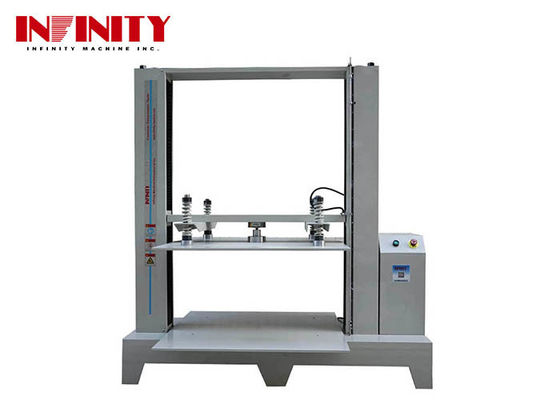

Cardboard Package Testing Equipment Compression Testing Machine 10KN / 20KN / 50KN
Model: C5310
Application:
Apply for compression resistance, deformation, stacking test of package container such as corrugated paper box and honeycomb box, and also the wooden package box.
Features:
High stability:
Adopt servo motor driver and gapless roll ball screw for transmission to eliminate noise and resonation; with timing belt transmission to get a accuracy location.
High precision:
Adopt highly precise explosion-proof loadcell,repeat tolerance: ±0.01%F.S.
Professional control software:
Servo motor control and computer professional software control. can do the compression strength test and the stacking test and get precise result. The software has the testing real-time graph, can set the test force, test displacement, and the force holding. Can output the professional test report with test results and test graphs, test report can be printed and also converted to be PDF format .
Specification:
| Model | C5310 |
| Capacity (optional) | 10KN, 20KN, 50KN |
| Unit (switchable) | N, KN, Kgf, Lbf, Mpa,Lbf/In2, Kgf/mm2 |
| Load resolution | 1/250,000 |
| Load accuracy | ±1% |
| Test space | 1000x1000x1200mm, 1200x1200x1200mm or 1500x1500x1500mm |
| Test speed | 0.001~200mm/min |
| Stroke resolution | 0.001mm |
| Software | Special close-loop control software |
| Motor | AC servo Motor |
| Dimension (WxDxH) | 1750x1000x2000mm or 1950x1200x2000mm |
| Weight | 1250Kg or 1550kg |
| Power supply | AC220V 5A or specified by user |
The test introduction:
1. The compression test.
This tester is with professional computer software control, can output the testing curve and the test report. The test can meet the standards ISO2872, ASTM D642, TAPPI-T804.
