| Place of Origin: | Made in China |
| Brand Name: | Infinity Machine |
| Certification: | CE, ISO |
| Model Number: | RS-8233 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Temp.Control: | RT～300℃ | Specimen Size: | (L)127mm X (W)13mm X (H)13mm |
|---|---|---|---|
| Heat Conduction Oil: | Glycerin, Estersil Oil Or Dielectric Oil | Churn Motor: | 25W |
| Dial Indicator: | 0.01～10mm | Weight: | 35 Kg |
| Dimension: | 550x400x600mm | Power Supply: | AC220V 50Hz 2Kw Or Specified By User |
| Highlight: | plastic testing instruments,hydraulic adhesion tester |
||

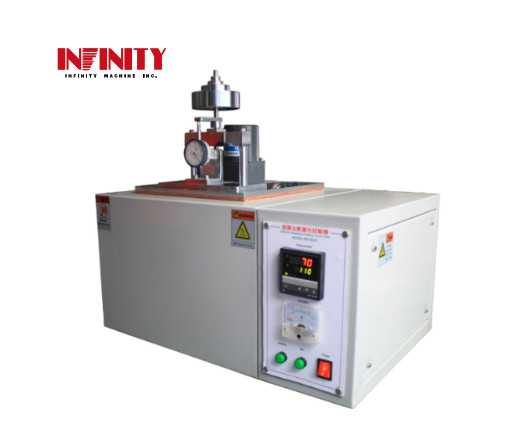

550*400*600mm Plastic Testing Equipment Heating Distortion Resistance Testing
Application:
Apply for plastic heating deformation resistance testing, put the testing sample on two supporting point in testing machine, forcing the heating rod
and rising temperature with 2℃/min. when the center of the testing sample sinking to a specific position (plastic material 0.26mm, hard rubber
material 0.25～ 0.33mm), the temperature will be the deformation temperature. Also can do material flexural strength test under normal condition
(hard plastic 23°).
Standard: ASTM D648-2007, CNS-2229, 4393
Specification:
| Model | RS-8233 |
| Temp.Control | RT～300℃ |
| Specimen Size | (L)127mm x (W)13(1/2in)mm x (H)13 mm(1/2in) |
| Heat conduction oil | glycerin, estersil oil or dielectric oil |
| Span Values | Space 101.6± 0.5mm, R3mm (method A), space 100 ±0.5mm,R3mm(method B) |
| Weight | 20g,30 g,50g,100g,200g,300g,500g,2000g |
| Churn Motor | 25W |
| Dial indicator | 0.01～10mm |
| Dimension (WxDxH) | 550x400x600mm |
| Weight | 35 kg |
| Power supply | AC220V 50Hz 2Kw or specified by user |
